Product Details:
|
| Product Name:: | Farm Wheel Tractor | By Wheel:: | 4WD |
|---|---|---|---|
| Rated Power (HP):: | 60HP | Drive Type:: | Gear Drive 8+2 |
| Core Components:: | Motor, Pressure Vessel, Gearbox, Engine, PLC, Bearing | Applicable: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Construction Works , Food & Beverage Shops |
| Color: | Blue, Red, Customized | Packing: | Wooden Case/Wooden Frame |
| High Light: | 4wd Agricultural Farm Tractor,4wd 4 Wheel Tractor,Agricultural Parts 4 Wheel Tractor |
||

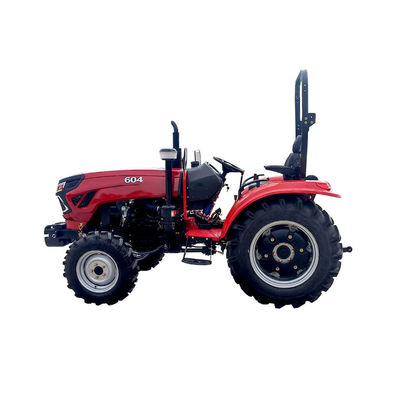

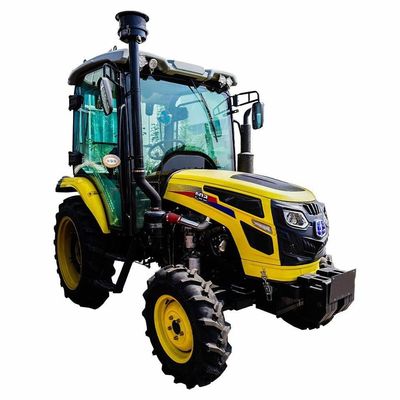

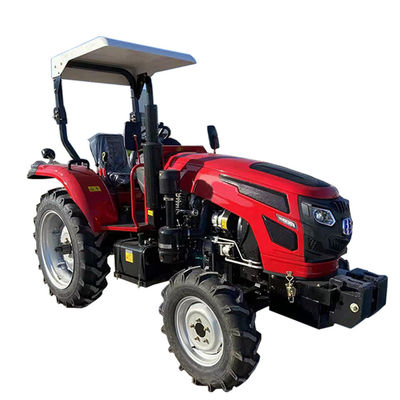

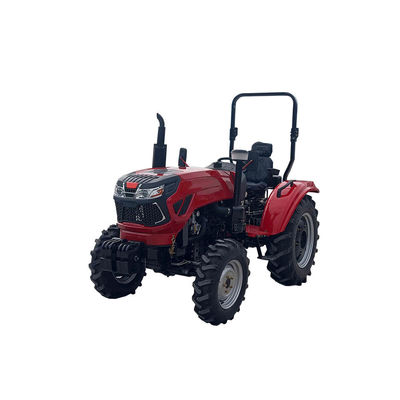

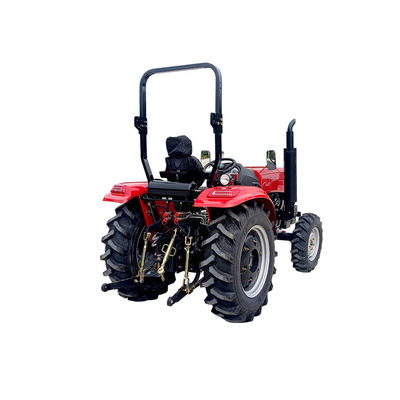

● TE series tractor is designed for multiple light works, such as farming, transportation etc.
● Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency
and fuel efficiency, low maintenance cost and good working performance.
● Using central console and mature structure, the tractor is easy to control and maintain.
● 8F+2R gearbox with easy operation and convenient maintenance;
● Optional single/double action clutches for different needs and operation; Optional
Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
● Hydraulic power steering( 4WD) makes it easy to control and reduce the labor strength of operator.
|
Product Parameter
|
|||
|
Model
|
604E
|
||
|
Type
|
4x4
|
||
|
Machine parameters
|
PTO power (KN)
|
37.5
|
|
|
Rated Traction( KN)
|
11.5
|
||
|
Dimensions(mm)
|
3550×1650×2350
|
||
|
Wheelbase(mm)
|
1965
|
||
|
Track(mm)
|
Front wheel
|
1150
|
|
|
Rear wheel
|
1200-1360
|
||
|
Minimum ground clearance(mm)
|
330
|
||
|
Turning circle radius
|
Unilateral braking
|
2.7±0.20,2.85±0.20
|
|
|
Not unilateral braking
|
3.0±0.30,3.15±0.30
|
||
|
Weight (KG)
|
1828
|
||
|
Drive Train
|
Clutch
|
Dual stage clutch
|
|
|
Gearbox
|
8F+8R shuttle shift
|
||
|
Walking steering
|
Tire
|
Front wheel
|
6.5-16/7.5-16/7.5-20
|
|
Rear wheel
|
11.2-24/12.4-24/12.4-28
|
||
|
Braking system
|
Service brake
|
Shoe brake
|
|
|
Working equipment
|
Maximum lifting force at 610mm(KN)
|
10
|
|
|
Suspension mechanism
|
Three-point suspension type 1
|
||
|
Hydraulic output
|
Optional 1 or 2 groups
|
||
|
PTO shaft
|
PTO speed r/min
|
540/760 or 760/1000
|
|
|
Engine
|
Engine brand
|
YTO
|
|
|
Engine type
|
Diesel engine
|
||
|
Engine cylinder
|
4
|
||
|
Optional
|
Cabin
|
AC
|
|
|
Start
|
Start method
|
Electric
|
|
|
Main fill volume
|
Radiater
|
10
|
|
|
Fuel tank
|
50
|
||
|
Engine oil pan(L)
|
5
|
||
|
Driveline oil (L)
|
20
|
||
|
Lifter(L)
|
9.5
|
||
|
This parameter table is for reference only, everything is based on actual products
|
|||
